XTRX Extractive Sampler
All Helio products can communicate with each other allowing a wide range of installations suiting most requirements with a single solution. Non Helio products can be added to the network including temperature, pressure, radiation ,existing detectors or any device that provides an output. Intuitive menus and on screen help text ensure ease of use and minimal training. Add relays, analogue inputs and outputs with expansion modules.
Simplfy Access Requirements
The Detector can be located remote from the risk area , for example in a service chase or outside a laboratory. Maintenance and Service operations can be carried out without the need for personnel to enter restricted or clean areas.
Description

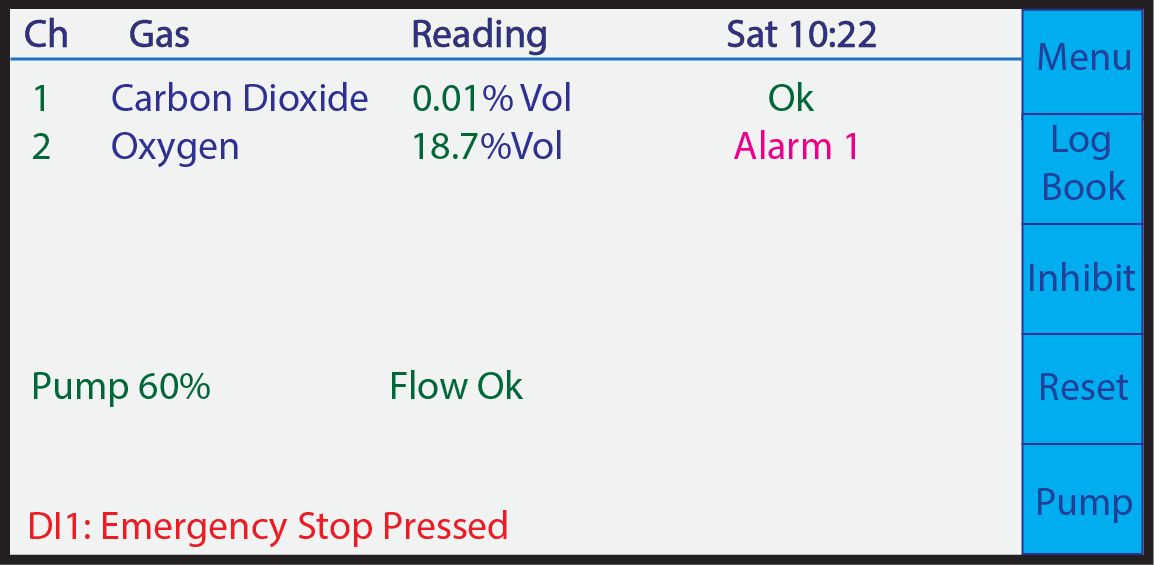

- 4.3” TFT Touchscreen Display • EC, Catalytic,Infra Red and PID Sensors
- 50M sample Distance
- Flow Monitoring
- Up to 2 Sensors per Unit
- Visual Display of Gas Levels • Independent 4-20mA Outputs • 4 X Programmable Relays
- 3 X Digital Inputs
- Connect up to 6 Helio Addressable Fixed Gas Detectors
- Internal Fault Monitoring • Event Log Feature
- IP65 Rating
- Built in E-Stop option
Specification:
Operating temperature -10 oC to 60 oC Storage Temperature -20 oC to 70 oC Humidity range 20 to 90 % non-condensing
Electrical Specifications
Supply voltage 24V DC
Power Consumption – 300mA
Relay contacts SPST, 250V, 10A, fully programmable
Inputs E-Stop, Fire Alarm, Links Transient protection PCB mounted Metal oxide varistor
Terminations PCB terminal blocks
up to 2.5mm2 cables
Alarm inhibit Password protected Alarm inhibit /muting
